Welit IR W2180 Wired Sensor Security System
39.37 ft Detection Range
12 m Max Alarm Distance
Wall Mount
Offers
Buy this product and get upto ₹500 off
Win a Surprise Cashback Coupon
Availability: In Stock
In the Box
| 1 Motion Sensor, User Manual, 1 Pair of Screw |
General
| Brand | Welit |
|---|---|
| Model Number | IR W2180 |
| Wired/Wireless | Wired |
| Number of Sensors | 1 |
| Brand Color | White |
| Display Type | NA |
| Audible Alarm | NA |
| Installation Type | Wall Mount |
| Detection Range | 39.37 ft |
| Minimum Alarm Distance | 2 m |
| Maximum Alarm Distance | 12 m |
| Color | White |
| LED Indicators | Yes |
| Detection Angle | 180 degree |
| Suitable For | Parking area, Washroom, Passage |
Power Features
| Power Requirement | 230-240 VAC / 50 Hz |
|---|---|
| Power Consumption | 0.5 W |
| Other Power Features | Maximum Load : 1100 W (Resistive load, e.g. Incandescent lamps), 450 W (Inductive, uncorrected load, cos ϕ = 0.5, e.g. Fluorescent lamps), |
Additional Features
| Certification | ISO |
|---|---|
| Technology Used | Passive Infrared Motion Detection Technology |
| Other Features | Installation height 1.5 – 3.5 m, Time setting 10 sec – 8 min, Twilight setting 10 – 2000 lux, Ambient temperature -10⁰ to +40⁰ C |
Dimensions
| Width | 8.7 cm |
|---|---|
| Height | 14.9 cm |
| Depth | 12 cm |
| Weight | 218 g |
Warranty
| Warranty Summary | 1 Year Warranty against manufacturing or workmanship defects |
|---|---|
| Covered in Warranty | Defects due to material or workmanship or manufacturing process only |

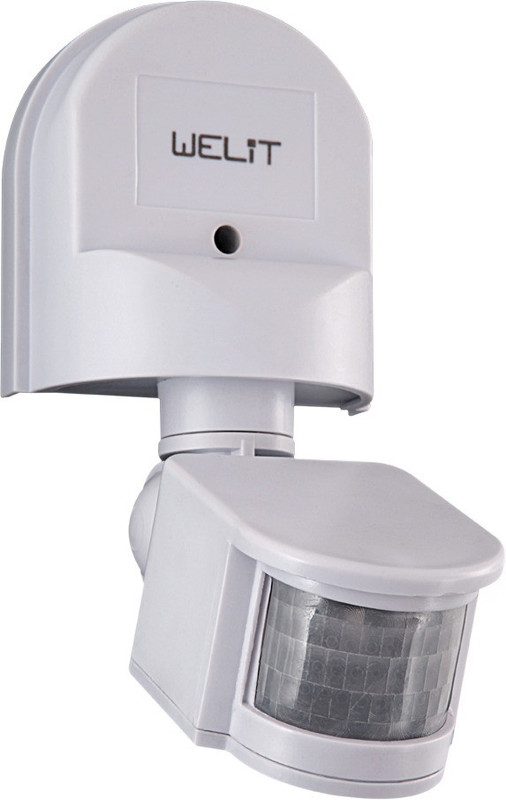

Price ₹1650 IR W2180 is a wall mount passive infrared motion sensor. The assembly of highly sensitive pyro-sensor and specially designed reflector provides the unmatched coverage of 180°. It detects heat radiated from a body. Segmented lenses divide the whole detection area into passive and active zones. When any warm object like human body moves between the zones, it is detected as a change in voltage by the pyro-sensor. When it detects such movement, it triggers the switching mechanism to operate the connected load.As the pyro-sensor operates by detecting change in the temperature, the ambient temperature plays important role in working of this motion sensor. Maximum detection reach distance mentioned in the technical specifications is measured at the ambient temperature of 25⁰ C. Detection reach distance might change with the change in ambient temperature.
